Cleaning and pre-adhesion processing of anti-vibration parts

Processing Details

  • Washing
  • Roughening

Problems with traditional methods

(removal of grease → shot-blasting → warpage)

  • Too much usage of chemicals and waste water.
  • Dust is generated.
  • Segmented processes cause failures in each process which leads to a lower production yield (low productivity). The size and length of each process leads to a lower utilization of space in the plant.

Solution (WBP)

(WBP:Wet Blast Phosphating system)

  • We can generate uniform and precisie Phosphate layers which can prevent peeling, even at the bottle-neck processes.
  • By using our exclusive method of transferring the metal parts, we can control and reduce waste water and chemical usage, thus reducing production costs.
  • Because the wet blasting and phosphating processes are connected and continuous, concerns about contamination and oxidation between processes are eliminated. Thus you are able to maintain a stable and higher level of quality.
 />Wet Blast Phosphating system/SEM Surface

Wet Blast Phosphating system/SEM Surface

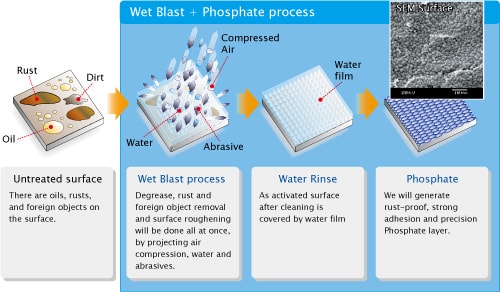

Wet Blast + Phosphate process

01

Wet Blast + Phosphate process

Untreated surface

There are oil, rust, and foreign particles on the surface.

02

Wet Blast + Phosphate process

Wet Blast process

By using compressed air to spray a mixture of water and abrasives onto the part’s surface, degreasing, removal of rust and foreign particles, and surface roughening are all done simultaneously.

03

Wet Blast + Phosphate process

Water Rinse

The surface is now activated after cleaning and is covered by a film of water.

04

Wet Blast + Phosphate process

Phosphate

A rust-proof and precise phosphate layer with superior adhesion is created.

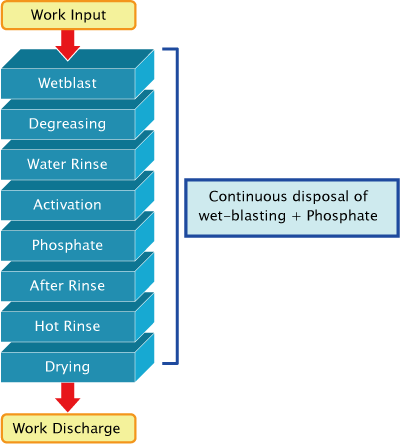

Process

Process

Utilization Results

Disc Brake (Before)

Disc brake before

Disc Brake (After)

Disc brake After

Metal Parts (Before)

Metal Parts before Rubber Bonding before

Metal Parts (After)

Metal Parts before Rubber Bonding After
