Peening method for aircraft capable of uniform processing in a large area

Processing details

  • Striking

What is Wet Peening?

The wet peening method is a new shot peening method, where wet blasting is used with a “wide gun,” our unique projection gun.

What is Peening?

ピーニング

This is a surface treatment by forging; hitting the metal surface with a round-head hammer.
Shot-peening is a surface treatment method for improving the mechanical characteristics of material surfaces, by hitting innumerable spherical particles at metal surfaces,

    • applying residual compressive stress to the materials,
    • making plastic deformation and surface hardening to the work piece surface.

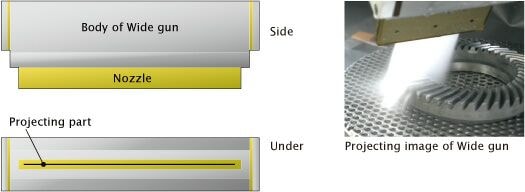

About Wide gun, the core technology of wet-peening method.

jirei_peening_02_en
  • Slit-shaped nozzle cross section.
  • Processing power to the whole surface is uniform

Difference of conventional guns

Difference of projection patterns

Conventional guns

Peening intensity is the strongest at the center and it becomes weaker as it comes to periphery area.

Wide gun

Projection power is uniform to the whole area in the direction of slip length except for both ends.

Utilization results

jirei_peening_04

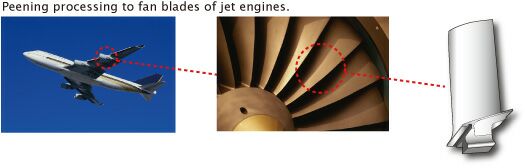

Processing example

jirei_peening_05

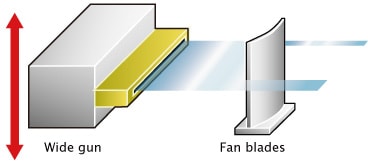

Process image
jirei_peening_06

Treatment can be done equally to both sides of the fan-blade with the same peening strength.
For a large area treatment, huge reduction in processing time can be achieved by the use of a wide gun.
